MGC Moser-Glaser Ltd.

6 Sight Studio Sdn. Bhd. is the Exclusive Distributor for MGC’s products in Malaysia.

MGC is a Swiss company established in 1914 and focused business field in busbar and bushings.

MGC’s know-how and expertise are based on the RIP insulation (resin impregnated paper), which was invented by MGC. This type of insulation offers numerous advantages:

free choice of positioning
no partial discharges with the voltages used

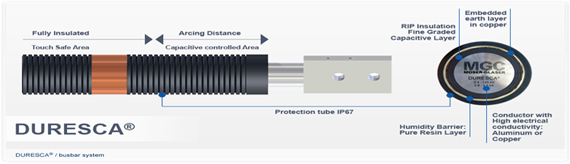

BUSBAR SYSTEMS - MGC DURESCA®

Provides highest level of quality that allows a safe lifetime of more than 30 years
High stability under UV exposure
Systems offer a compact and safer solution compared to cable or conventional bus duct solutions
Compact design with reduced bending radius
All of our busbar systems have a protection tube which provides the best possible barrier against humidity and moisture ingress, excellent mechanical protection
Rated for 12kV until up to 325kV

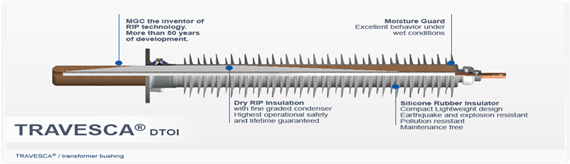

RIP BUSHINGS-MGC TRAVESCA®

Excellent mechanical properties and complies with the class Heavy Load(level II) according to the IEC 60137-2008
Moser Glaser can offer short delivery times for its standard range of product.
Specification:
Application: Oil Insulated Transformers
Type: Transformer - Outdoor
Construction: Dry fine graded condenser RIP Insulation with Silicone Insulator
Voltage (Um): 36 to 300kV
Current (Ir): Up to 3150A

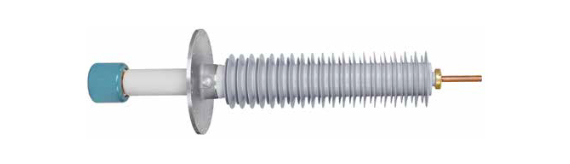

RIS BUSHINGS-MGC TRAVESCA®

The main performance and life expectancy restraint in RIP condenser bushing was found to be the paper itself as paper is an organic material with inconsistent material parameters, namely the moisture content.
With thorough research and experiments, MGC has found a special polyester structural material which is an excellent alternative to paper while improving the quality of bushings.
The new Resin Impregnated Synthetic RIS is now developed and part of MGC products portfolio.
